Last of the Game Gear video series is up! Glad to have gotten this all fixed up for @jay
I’ve also wrapped his PC-E Duo-R RGB mod and will post that soon!
2 Likes
I uploaded the video for the PC-E Duo-R RGB mod that I recently did for @jay ! This one is a doozy so strap in. It was my first time doing one of these so I learned a lot and had a great time doing it. I’d wanted to do one for a while. Voultar’s RGB kit is super easy to use. At some point I need to pull my personal unit apart and see what kind of modding was done to it for RGB.
5 Likes
Had fun last night throwing together a Neo Bios Masta for my MV1C. Dropped unibios 4 on it. I have parts to make a couple more if anyone here is interested.
4 Likes
New video up! Made a video on hot to put together your own Neo Bios Masta.
3 Likes
I finally got around to posting a video on @apathetic 's Gameboy vertical line fix!
5 Likes
Also reminded me that I need to finally get around to watching the second half of the Wii mod video. Time flies.
Also the issue started popping up again, but I’ve been too busy to address it/wanted to wait till I had some other work that needed to be done. Or just go with a full new build.
2 Likes
Yep, apparently the solder fix for the vertical bars is a somewhat temporary thing. Let me know if you decide you want to do a new build or just replace the screen or something. Cheers!
3 Likes
I’ve had the same thing happen to one of my Gameboys, fixed it once, then after some use a few bars came back. Tried to fix again, and it only seemed to get worse.
I really think the only true permanent fix is to replace the screen so it has a better connection than the original.
2 Likes
This post has been a loooooong time coming. Way back in September of 2020 our very own @Sapiens sent me a very special console to do some work on for him. He sent me his RG-M1 Wondermega by Victor. It’s one of the coolest and most complex pieces of Retro gaming hardware around.
Sapiens told me that this unit was having power issues. It would take minutes to warm up before switching on and when I tested it the lid would have trouble opening. The lid LEDs would flash and the door would move sporadically as it opened.
It was time to crack this bad boy open and take a look.
As you can see it was going to be a big job. Just disassembling this unit was a challenge. The Wondermega consists of 4 main boards and several smaller sub-boards that control things like the LEDs.
The main one here you can think of as the Mega Drive side of the unit. It contains all of the chips that would be on a regular mega drive or Genesis, the cartridge connector, and the 4 voltage regulators and giant heat sinks that power all this hardware.
This is the Mega CD board and Karaoke board. They actually pull out of the console together in one unit.
This is the Mega CD board.
And this is the Karaoke board.
This is the AV board. It natively supports S-video and Composite.
After inspecting everything I could see that there were a few bulged caps (not pictured) but nothing leaky. I also determined that it would be a good idea to replace the four voltage regulators due to how hot this area of the console gets during operation and the power issues it was having.
This is where our story takes a huge left turn. After turning the console back on to test it the PCM audio was gone… there was no bios music when I turned in the console. PCM audio was missing from CD games too. Oh no.
I’m not 100% sure what happened but my theory is that the PCM chip had gotten “used” to getting weaker voltage from a stressed out regulator. When I put the fresh ones in it got a full load and with having operated out of spec for who knows how long it decided to give up the ghost.
Regardless I now had a major repair job on my hands.
Up to this point I’ve fixed up a handful of consoles. A couple bad regulators here and there, replaced some caps, fixed some traces. But that was all stuff that was easy to measure, logic my way through, or physically see. This was something else entirely.
There is NO documentation available out there for this particular unit. You can find some things for the X’eye and the OTHER version of the Wondermega but this one had me against the ropes.
When I started this repair, I didn’t have a rom cart, an oscilloscope, or a logic probe. I also didn’t have twitter. (We’ll come back to that.) I was at a loss. I didn’t know what to do.
I contacted Sapiens to let him know what was going on and hats off to him. He has the patience of a saint. He let me keep poking at it in between jobs. For years.
I asked around on the console repairs sub reddit without much luck. I looked at manuals where I could and watched videos of repairs of other units but up to now nothing was shaking loose.
Then a week or so back I happened upon a repair thread by Aergan over on twitter.
Seeing how he reasoned through his repairs was incredibly helpful. I started asking questions and things started shaking loose. After years of little progress now I was starting to get some where!
I’d bought a rom cart and upon Aergan’s suggestion used 240p test suite to run audio hardware tests. Everything came up as good so I was able to determine that the problem wasn’t there. Aergan recruited Leo Oliviera and with thier help we determined that the fault had to be with the Ricoh PCM (315-5476a) or the DAC (NEC UPD6376) that converts the digital audio from the PCM into the audio you actually hear come out of your speakers.
There wasn’t even good info on what chip was the DAC. I ended up using my oscilloscope to trace signal from the PCM across the board until I found the chip it was going into. Aergan hooked me up with a link to the console5 tech wiki for the Ricoh chip.
https://console5.com/wiki/RF5C164A
That showed me which pins output the PCM digital audio. (35, 36, 40, and 41) That was how I found out which chip the DAC actually was.
I actually ended up building an audio test probe so I could isolate the Audio from the DAC. I took an old guitar splitter cable and rewired it. I hooked it up to a guitar amp so I could hear the analogue audio right from the pins on the chip.
I was still getting the same audio there as I got out of the AV board. So I knew the problem wasn’t AFTER the DAC. I probed around some more but didn’t have a good frame of reference for what the digital audio should measure as. I thought there may be a fault with the DAC after measuring 5v at the left input at the DAC when the right input measured 1.8v. Leo informed me that I was in luck because that same DAC can be found in Super NES consoles. I just happened to have a few parts units on hand. Time to get back to it!

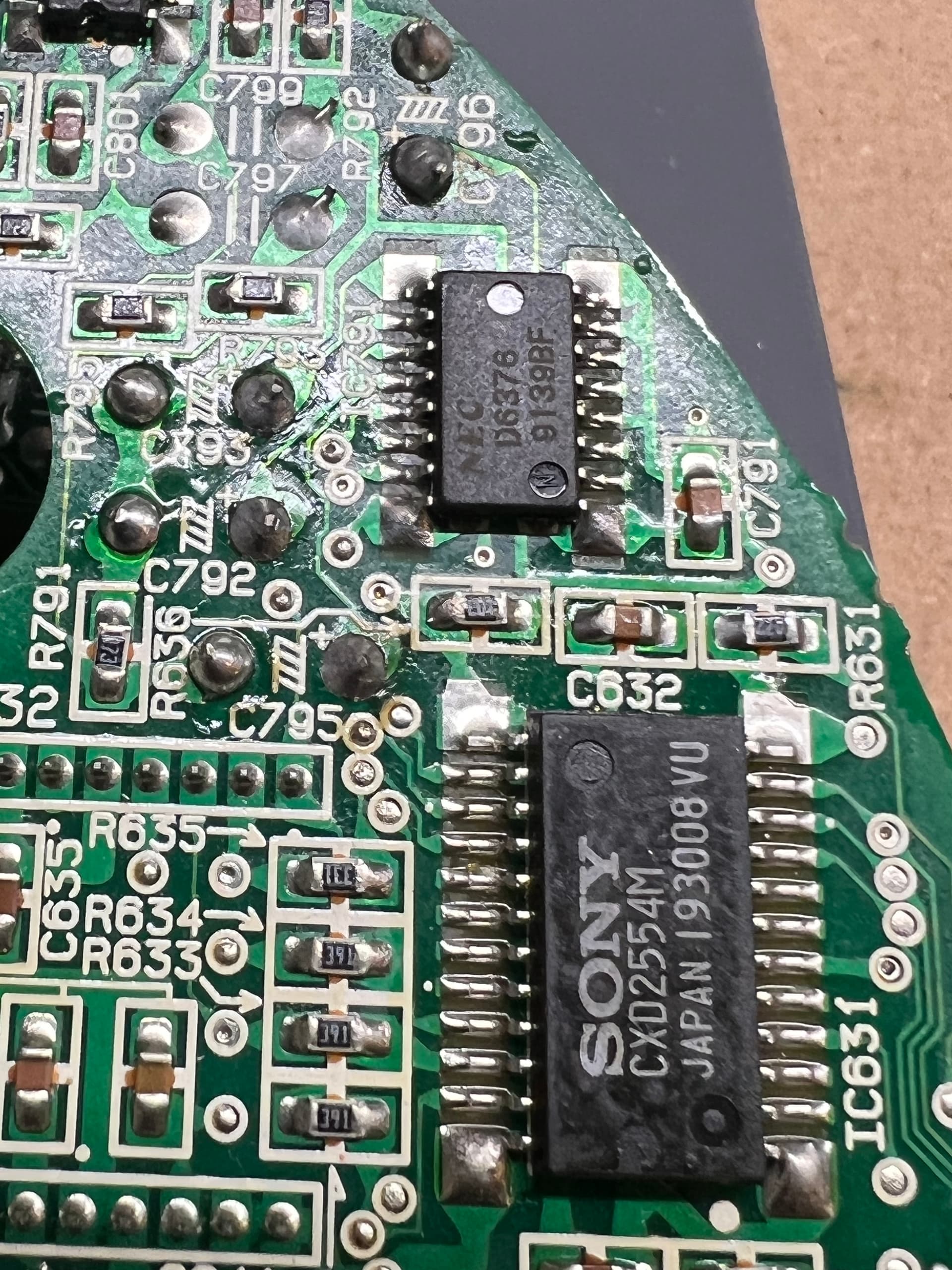

The DAC
Removal was a huge challenge. The chip was actually glued down and the old pads all wanted to come up.
Luckily everything was easy to get hooked back up. 1 small bodge wire was all it took.
Aaaaannnnnnd… no dice. Still getting the same audio on the scope, the audio probe, and the AV board. So the problem HAD to be with this guy…
I happened to remember that I have an old model 1 Sega CD unit lying around with a busted disc drive… so I cracked it open and what do you know. It uses the same chip! So I got out the hot air station and pulled the 315-5476A chip.
Time to pull the bad one from the Wonder Mega. First thing I did was put down some Kapton tape to protect the other components in the area.
Then I pulled the old chip. This one came out muuuch easier.
A little solder and a lot of flux later and this is how we were looking.
the only thing left to do then was cross my fingers and hope that I’d FINALLY gotten to the bottom of it.
This was the video that I sent Sapiens next.
I can not tell you how relieved I was to have finally solved it! I’d told Sapiens that this project was my “white whale.” For a while it felt that way but after finally getting it I felt like a million dollars. Bloodborne boss defeat levels of accomplishment feeling on this one.
Man. I learned so much in this one. Really felt like my skill leveled up. And what an incredibly cool piece of hardware to get running good as new again.
Double extra thanks to Sapiens for being so patient and cool while I worked this one out. The Wondermega is currently on its way back to him.
I love this community. I stand by my statement that it’s the best retro gaming community on the internet. It really is.
This will probably be my last retro modding/repair post for a little bit. I’m getting ready to move in January. I may have time to squeeze in an SA-1 conversion video that I’ve been planning for a while but if not it’ll probably be the spring before I have my new shop set up. Either way I’ll be doing more of these. I just love getting to work on this stuff for you guys.
Cheers!
14 Likes
I think the Wondermega is one of the coolest looking consoles ever (it wouldn’t look out of a place in a cyberpunk movie), so it’s wonderful that you’ve managed to salvage this one. Great job!
3 Likes
Hey, thanks! Yeah, I have to agree. It’s such a slick piece of hardware. The way the lid operates is the coolest of any CD console. I see why they are so collectible. It’s definitely a centerpiece. Speaking of which @Sapiens I’d love to see a pic of it when it is back in its place in your set up.
5 Likes
What a rollercoaster of emotions!
3 Likes
Epic repair. Hats off for seeing it through!
Well done
4 Likes
All those screws = anxiety
Well done on getting it fixed, a very enjoyable writeup! Are you self-taught when it comes to the oscilloscope?
5 Likes
Yeah! It felt daunting at first but as I spent more time with it I just ended up sort of remembering where everything went. As far as the scope I watched some YouTube videos from The manufacturer and found this video that Bob from Retro RGB did to be be super helpful.
I got my legs under me with it doing a full recap on an old 70’s stereo receiver for my dad. I used the scope to make sure each channel was functioning the same. I used a tone generator as an bout and used the oscilloscope to dial it in.
2 Likes
Wow you had to level up to pull this one off, awesome read. Wiring into a guitar amp straight from the chip to get the analog audio sounds like some voodoo black magic to me lol
2 Likes
It kind of felt like it! Leo Olivier hooked me up with a video that showed how to make one. It makes sense. If an oscilloscope lets you see the signal this let me actually hear it. Wish I’d thought of it myself. It was pretty awesome to hear it work though. The audio probe is definitely part of my tool kit now. It helped that I had everything I needed on hand.
2 Likes
Great Job @Danexmurder! Jealous you got to tinker with a WonderMega!
If you know a SMD mounted IC is bad for certain then I would just use flush cutters to cut the ic from the board then just use solder braid to clean of the pins left behind. Much less chance of pad damage then.
Really like you did a written write up for this! I know they are a pain and time consuming to create but find them more practical to gain insight from them than from a video.
3 Likes
It was really awesome getting to crack one of these open. I’d never actually had an IC glued down like that before. I didn’t even know it was a thing. Good tip.
Yep, posts like this take forever to write but I still like to do them from time to time. They are certainly better for documenting things. A video is entertaining and can show you how to do things. But posts like this are definitely better for reference. I’d rather not have to scroll through a video.
3 Likes
Hey I see you’ve done some SA1 mods/conversions, what socket did you put in, and does the shell close? was thinking of getting some shining scorpion carts and swapping out the sram+soldering in a flashrom rather than an eprom, just wondering if the socket method would be better in your opinion
